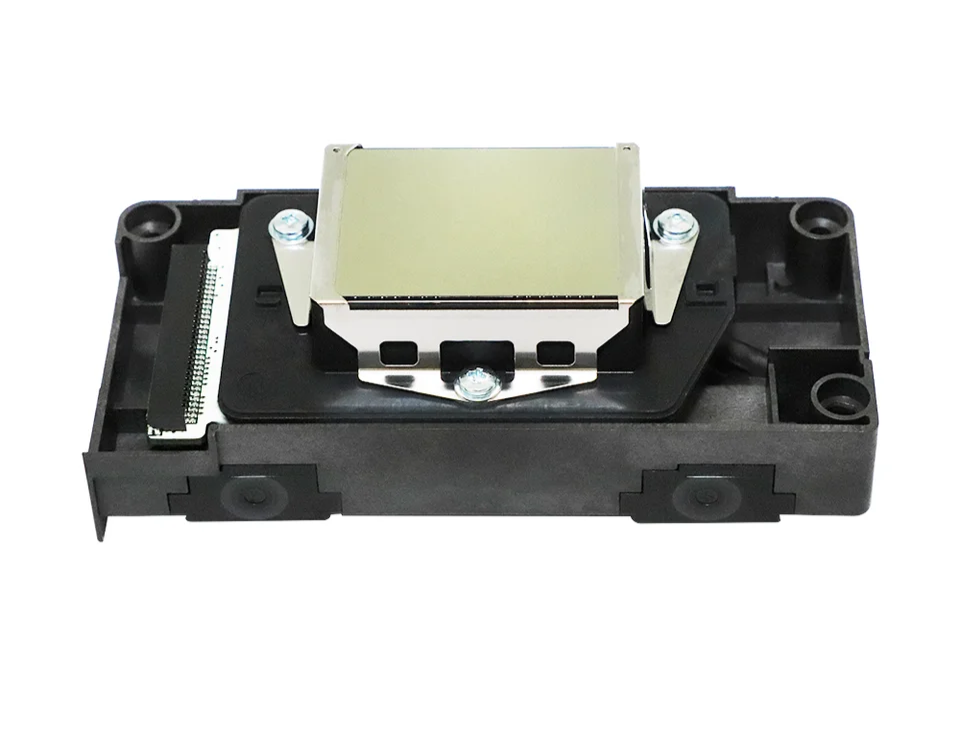

Specification of Unlocked DX5 Printhead
|
|||
Part Model
|
EP F186000 dx5 print head
|
||
Place of origin
|
Japan
|
||
Features
|
100% original and new
|
||
Printing Type
|
Eco solvent printing
|
||
Technology
|
Micro-Piezo
|
||
Use for
|
For Chinese Eco solvent printer, for epson printer
|
||
Number of Nozzles
|
1440 (8 lines x 180 nozzles)
|
||
Native Resolution
|
1440dpi
|
||
Smallest Droplet
|
3.5pl
|
||
Max. droplet size
|
21 pico litre
|
||
Ink compatibility
|
water-based dye and pigment inks
|
1. Ex- shipping test:100 % checking before package and shipment.
2. Factory direct sale price.
3. The voltage of the printhead, temperature is automatically adjustable, prevents blockage caused by the change of temperature.
4. Edge feather function can blur the pass line and feather the pass edge.
5. Delicately designed alloy-aluminum platform.
Mimaki Series Printer
|
Mimaki Jv33 130/160/CJV-130/Jv5 130S/160S/260S/320S ...
|
||
Mouth Series Printer
|
Valuejetjet 1204/1214/1304/1314/
Valuejet 1604/1614/1618/2216/1624/1638 ...
|
||
Allwin Series Printer
|
Allwin180S/250S/320S ...
|
||
Galaxy Series Printer
|
Galaxy UD161LA/181LA//211LA/2512LA ...
|
||
Gongzheng Series Pinter
|
GongzhengV1801S/1802S/A1801S/1802S/2602S ...
|
||
Made In China Printer
|
For Wit-color,Micolor,Aprint/Astarjet,etc
|
1.Maintenance after completion of work
maintenance of the printer after finishing printing can be carried out by simple cleaning operation after finishing printing. The residual ink on the sprinkler head and surface and edge can be removed, and then the sprinkler head can be placed back in the ink stack for relevant maintenance such as sprinkler moisturization.
2.Maintenance of the printer is not used for a long time and idle is as follows:
1) Turn off the power supply related to the photo machine, remove the nozzle from the printer according to the correct method, and clean the residual ink stains;
2) Clean the sprinkler thoroughly with sprinkler cleaner, including the ink marks on the surface of the sprinkler.
3) Inject special nozzle maintenance agent into each ink column of the nozzle, such as nozzle cleaning liquid to clean the nozzle;
4) After cleaning the sprinkler head, wrap it with sealing film and place it well.
Kindly Reminder : If you are a user of piezoelectric photo machine, you must pay attention to the use and maintenance of piezoelectric nozzle, so that the photo machine always keeps the best printing status.
Our Service
1).Printhead : 100% original brand new.
2).24-hour inquiry & consulting support online Service.
3).Service in Spanish Portuguese Arabic and German available ect.
4).Ex-shipment test: 100% tested before package and shipmen.
