Application:

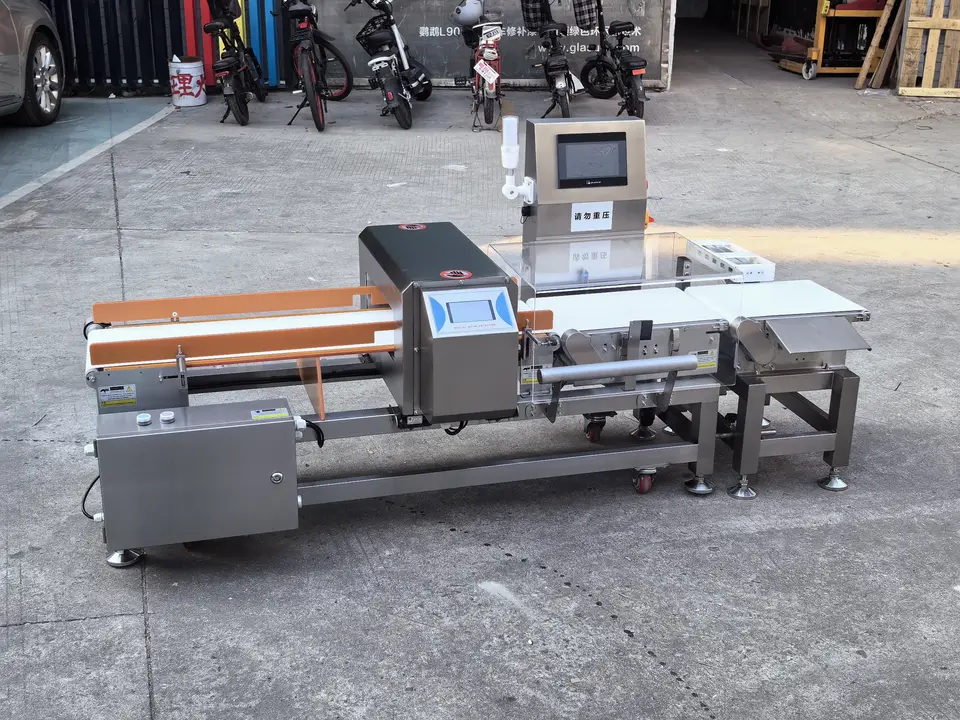

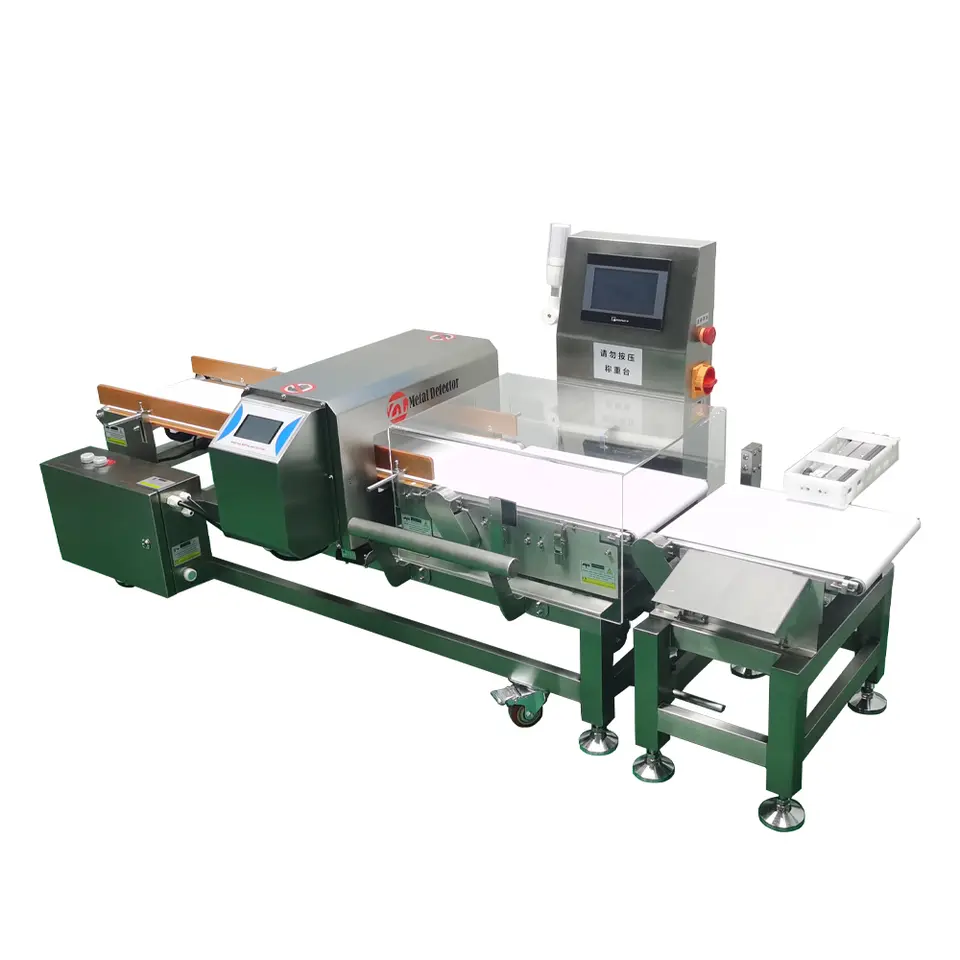

Food Metal Detector and Check Weighing Machine is suitable for detecting the weight of various products and whether it contains metal. There are two push rods that can transfer the bag with excessive weight or light weight and the product containing metal to the next device.
It is widely used in the detection of meat, frozen meat, sea food, mushrooms, drinks ,fruits , Sugar, Salt and vegetables.
Parameter of Weight checker:
Testing product | Food |
Test product weight | 400g ~ 1000g (can be customize) |
Detection speed | 40 ~ 60 pieces / min (can be customize) |
Detection accuracy | ± 2g |
Weight checker table size | 650 * 450mm (can be customize) |
rejection device | putter or fall rejection (Optional function) |
Pressure requirements | 0.6 mpa |
Delivery direction | from the left to the right for the user interface |
Conveyor from the ground height | 750 ± 50mm (can be customized) |
Parameter of Metal detector:
Detection width | 40cm (can be customize) |
Detection height | 13cm (can be customize) |
Machine length | 120cm (can be customize) |
Ground to conveyor surface height | 750 ± 50mm (can be customize) |
Detection method | band induction |
Alarm mode | alarm stop |
Elimination method | lever type rejection |
Delivery speed | 28m / min (can be customize) |
Shell material | 304 stainless steel |
Power | AC220V; 100W |
Automatic setting | One-touch operation |
Detection sensitivity | Fe ≥ φ1.2mm SUS ≥ φ1.8mm |
Features of metal detector:
1, For food has excellent detection results
2, Fe and SUS can be individually adjusted
3, The detection of internal use of imported resin pouring
4, With portable switch
5, Both sides of the board can adjust the range of product size
